The Physics of Ride Quality: Understanding Motion Ratios and Suspension Leverage

You just invested $3,000 in a premium suspension setup. You carefully selected the spring rates, bolted up the shiny new dampers, dropped the car off the jacks, and took it for a test drive. But instead of that dialed, race-ready precision you paid for, the ride feels dangerously mushy. Or perhaps it’s the opposite—your car is suddenly skipping over bumps like a dump truck.

Welcome to the middle-of-the-funnel setup crisis.

This is the exact moment many drivers mistakenly blame the hardware. You might assume your 800lb springs were the wrong choice, or that your high-end dampers are defective. But more often than not, the culprit isn't the components you bought—it's the mathematical relationship between those components and your chassis.

To bridge the gap between hard physics and "butt-seat feel," we need to look past the spec sheet and understand the kinematic translator of your vehicle: the motion ratio.

The Geometry Debt: Why Your Control Arms "Steal" Your Spring Rate

When you buy an 800lb/in spring, you naturally expect it to take 800 pounds of force to compress your wheel one inch. But unless you are driving a race car with a perfectly vertical McPherson strut mounted directly over the tire contact patch, that is never the reality.

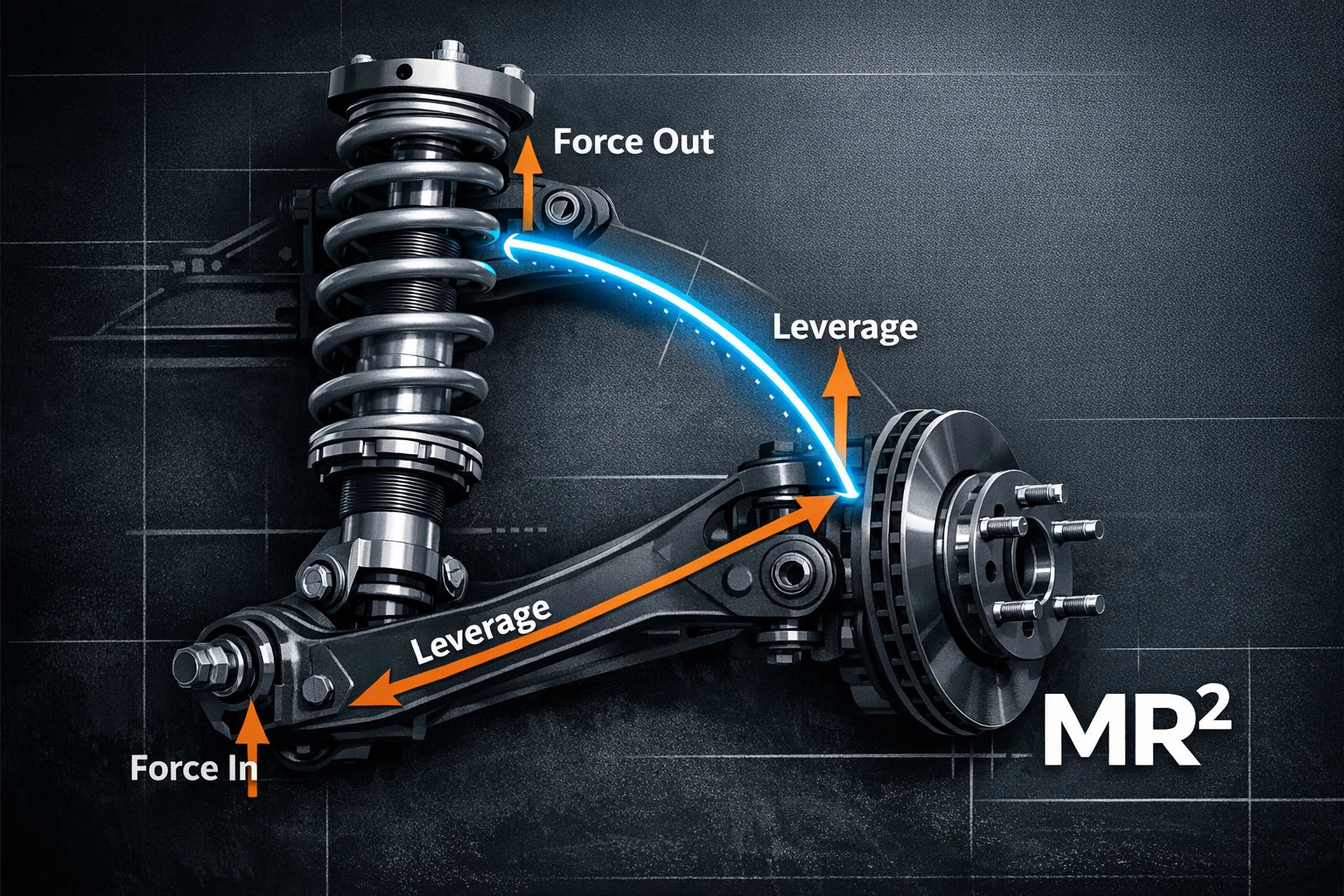

Your suspension arms act as levers. Because the coilover is almost always mounted inboard from the wheel hub, the wheel has a mechanical advantage over the spring. This leverage dictates your Motion Ratio (MR)—the amount the shock compresses for every inch of wheel travel.

If your wheel moves upward by 1 inch, but your shock only compresses by 0.7 inches, your motion ratio is 0.7. But here is the critical data point that trips up even seasoned tuning enthusiasts: leverage doesn't reduce spring effectiveness linearly. It follows the Square Rule.

According to engineering standards utilized by firms like OptimumG and Racecomp, your Effective Wheel Rate (the actual stiffness you feel in the driver's seat) is calculated as: Spring Rate x (Motion Ratio)².

Motion ratio doesn’t reduce spring effect linearly. The square rule (MR²) can cut effective wheel rate in half—often the hidden reason expensive suspension feels unexpectedly soft.

Let’s run the math on that 0.7 motion ratio. If you square 0.7, you get 0.49. That means your suspension geometry is literally stealing 51% of your spring rate. That 800lb spring? It's only providing 392 lbs of actual wheel support. This "geometry debt" is the primary reason off-the-shelf spring recommendations often fail to deliver the ride quality you expect on highly modified vehicles.

Damper Velocity Physics: The Hidden Reason Expensive Shocks Feel Cheap

Most suspension guides stop at spring rates. But springs only support the vehicle's weight; dampers control the energy. And motion ratios have a profound, often ignored impact on Damper Shaft Velocity.

High-end systems like KW Suspension, Fortune Auto, or heavy-duty Fox 2.5s are engineered with incredibly sophisticated valving. They rely on specific shaft speeds to open their shim stacks and bypass valves.

When you have a low motion ratio (e.g., 0.5), your damper shaft is moving at half the speed of the wheel. When you hit a sharp bump, the wheel might spike to an upward velocity of 20 inches per second, but the shock shaft is only moving at 10 inches per second.

Motion ratio doesn’t just change wheel rate—it changes shaft speed. Low MR can keep the damper in low-speed zones, making premium shocks feel underdamped or unresponsive.

This creates a massive disconnect in suspension feel. Because the damper never sees the high-speed inputs it was designed for, the high-speed compression valves never fully open. Instead of soaking up the impact, the shock remains trapped in its low-speed damping circuit, creating a harsh, "clunky" ride. Conversely, on rolling undulations, the extremely slow shaft speeds fail to generate enough hydraulic resistance, resulting in a mushy, underdamped feeling.

This is why simply bolting on top-tier components doesn't guarantee top-tier performance. If the valving isn't custom-tailored to your vehicle's leverage physics, you are paying for premium engineering that your car's geometry physically won't allow you to use.

Can Technology Override Geometry? Semi-Active vs. Passive Systems

As enthusiasts evaluate their upgrade paths, a common question arises: If my chassis geometry is compromised, can I just use electronic damping to fix it?

Semi-active suspension technologies (like those developed by WP, Bilstein, and TEIN) use electronic sensors to adjust damping forces in milliseconds. When evaluating traditional passive hardware versus semi-active systems, it’s vital to understand what electronics can and cannot do.

Semi-active systems are brilliant at widening the tuning window. If your motion ratio causes your damper to sit awkwardly between low-speed and high-speed valving zones, an active system can dynamically stiffen or soften the circuit to compensate for the geometric disadvantage. It acts as an electronic band-aid for mechanical leverage flaws.

Semi-active control can improve damping across conditions, but it can’t fully override leverage geometry. Use this to decide whether you need electronics, re-geometry, or both.

However, electronics cannot rewrite the laws of physics. They cannot create shaft velocity out of thin air, nor can they magically restore the 50% of spring rate lost to a 0.7 motion ratio. For ultimate vehicle dynamics—whether you are tuning a track-day weapon or a daily driver—the mechanical foundation must be sound. Industry standard for most independent suspensions targets a 0.7 to 0.9 motion ratio for packaging efficiency, while pure race-spec pushrod systems aim for an exact 1:1 ratio to maximize damper sensitivity and eliminate the geometry debt entirely.

The Unified Field Theory of Suspension: Troubleshooting Harmonic Chaos

Suspension physics isn't limited to the automotive world; it governs everything around us. This is what we call the unified field theory of suspension.

Take a moment to look up DIY troubleshooting for a Samsung washing machine vibrating violently during a spin cycle. The culprit? Worn-out suspension rods. Believe it or not, a wa400pjhdwr washer rod follows the exact same differential equations of mass, spring, and damper as your high-performance coilovers.

Just like an E30 engine damper trying to isolate powertrain vibrations, your vehicle's suspension is tasked with managing harmonic resonance. When the spring rate, damper valving, and motion ratio are out of phase, harmonic chaos ensues. The wheel oscillates uncontrollably, the tire loses contact with the pavement, and mechanical grip vanishes. Whether you're trying to keep a 50-pound washing machine drum stable or keep a 3,000-pound chassis planted through a sweeping corner, controlling leverage and velocity is the only way to tame the physics.

The "Feel" Index: Translating Kinematics into Next Steps

Understanding the math is only valuable if you can translate it into actionable tuning decisions. If you are currently evaluating your setup or planning your next coilover purchase, you need a kinematic translator to guide your choices.

Use motion ratio ranges to predict ride feel and pick the right fix—spring changes, revalving, mount relocation, or normal tuning—without guessing based on brand alone.

If your vehicle exhibits specific handling traits, refer to this framework before buying new parts:

• Symptom: Bottoming out easily, "mushy" turn-in, excessive body roll despite stiff springs.
• The Physics: You likely have a low motion ratio (<0.6) resulting in a massive geometry debt.
• The Fix: You cannot fix this with a standard damper adjustment. You require drastically higher spring rates and a custom damper revalve to make the shock sensitive to low shaft speeds.
• Symptom: Harsh, skittish over small bumps, feels like the suspension isn't moving.
• The Physics: Your damper valving is too aggressive for your wheel rate, or your motion ratio is closer to 1:1, meaning you are over-sprung for the vehicle's weight.
• The Fix: Drop your spring rate to match the true wheel rate requirement. Ensure your damper's high-speed compression circuit is opening correctly.
• Symptom: Great on flat roads, terrifying on off-camber or bumpy corners.
• The Physics: Harmonic resonance. Your damper rebound isn't matched to the immense stored energy of heavily leveraged springs.
• The Fix: Focus on rebound tuning. High spring rates required by low motion ratios store massive kinetic energy; your shocks need adequate rebound valving to control that violent return force.

Frequently Asked Questions (FAQ)

Why do manufacturers sell kits with spring rates that feel wrong for my car?

Many entry-level suspension manufacturers use off-the-shelf spring lengths and rates to keep costs down across multiple vehicle platforms. Premium brands take the vehicle's specific motion ratio into account during R&D, ensuring the supplied springs yield the correct effective wheel rate for that exact chassis.

Should I change my springs or get my dampers revalved?

If your ride height is correct but the car feels too soft or too stiff, start by calculating your wheel rate. If the wheel rate matches your target but the ride is harsh over sharp bumps, the issue is damper valving (shaft velocity). If the car wallows and rolls excessively, you likely need a stiffer spring to overcome a poor motion ratio.

Can I change my car's motion ratio?

Usually, no—at least not without major fabrication. Motion ratio is dictated by the physical mounting points of your control arms and shock towers. For most enthusiasts, the solution is not cutting and welding new shock mounts, but rather purchasing a coilover kit mathematically tuned to complement the factory geometry.

Does lowering my car change the motion ratio?

Yes, but typically only by a marginal amount. As the control arm angle changes, the leverage angle (progressive vs. linear motion ratio) shifts slightly. However, the more pressing issue with lowering a car is the loss of total shock travel, which makes proper spring rate calculation even more critical to prevent bottoming out.

When you strip away the marketing, suspension tuning is purely an exercise in managing mechanical advantage. By evaluating your next coilover purchase through the lens of leverage physics and shaft velocities, you stop guessing—and start building a vehicle that handles exactly the way you demand.
