How to Set Ride Height on Coilovers
One of the best things about a coilover kit is that you get to pick exactly where the car sits. One of the most common mistakes is picking a number lower than makes sense for how you actually drive it.

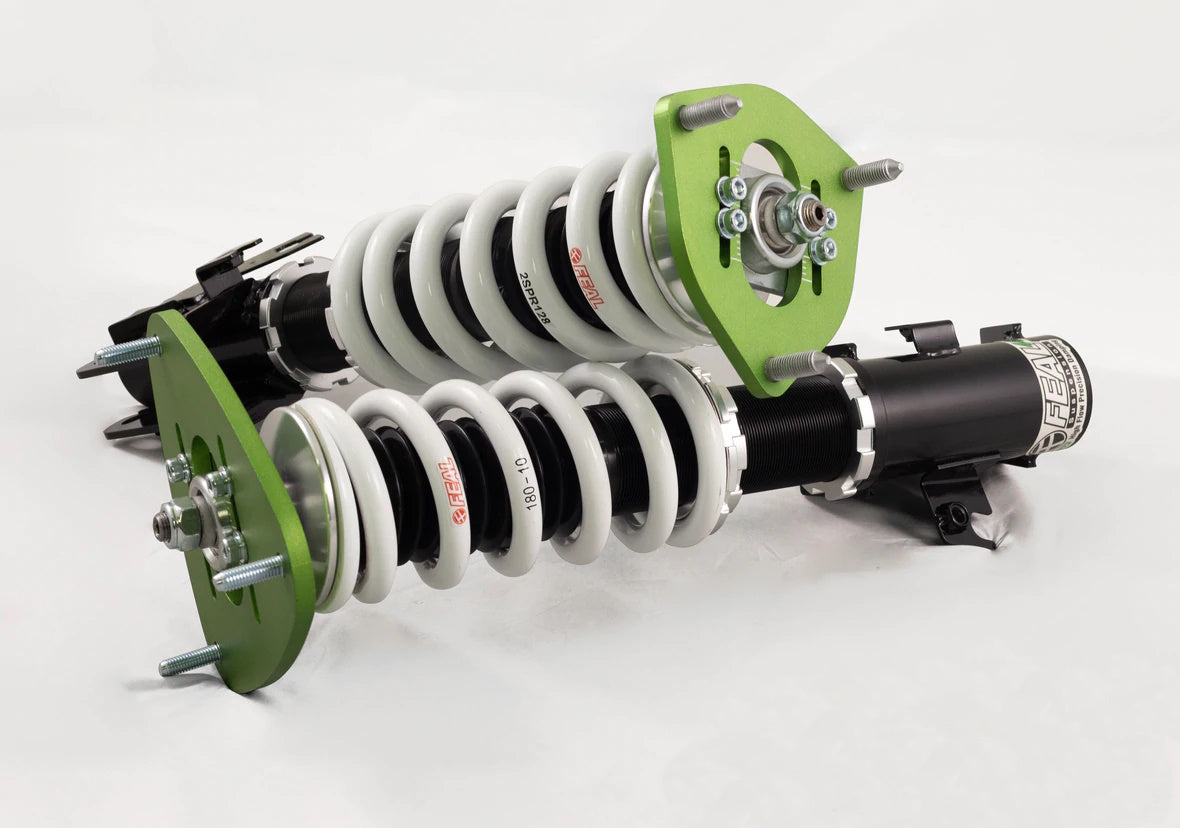

Understanding Coilover Components
Before you touch anything, know what is actually moving when you turn a wrench on a coilover. A quality coilover kit is the foundation of any serious performance suspension upgrade, and ride height is the most visible adjustment it offers.
Threaded body. The outer shell of the shock absorber, machined with threads. The spring perch sits on those threads. Rotate the spring perch and it moves up or down the threaded body, changing where the spring sits and how high the car rides.
Locking collar. A threaded ring directly below the spring perch. Once you set your ride height, the locking collar locks the perch in position. A loose locking collar is how ride height changes on its own.
Spring preload. Separate from ride height on quality kits. Moving the spring perch changes ride height. Preload is set separately. Do not confuse the two.
Importance of Proper Ride Height
The Sweet Spot for Daily Drivers
1 to 1.5 inches below stock ride height. You get real visual improvement, measurable handling benefit, and a car that still lives comfortably on real roads. Beyond 2 inches on most platforms, daily drivability starts to suffer. Going lower is possible, but it is a deliberate trade-off.
Handling. Lowering the car reduces the center of gravity, which means less body roll and better cornering stability. However, going too low affects suspension geometry. The suspension arms sit at angles they were not designed for, affecting camber, bumpsteer, and handling balance.
Aesthetics. A 1 to 1.5 inch drop closes the wheel gap and gives the car a purposeful stance without slamming it.
Practicality. Every inch you lower reduces ground clearance and available suspension travel. A car set too low contacts bump stops constantly, creating a harsh ride and accelerating wear.
Preparing for Ride Height Adjustment
Before you touch the car, have these on hand. Coilover spanner wrench, measuring tape, floor jack and jack stands, torque wrench, and the phone number of your alignment shop.
Park on a flat, level surface. Every time. A slight slope will quietly introduce error into every number you take.
Steps to Adjust Ride Height
Step 1. Lift and support the car safely. Jack it up at proper points and put it on stands. Never adjust ride height with the car under load.
Step 2. Loosen the locking collar with your spanner wrench. Turn counterclockwise to loosen.
Step 3. Rotate the spring perch to set your new height. Clockwise threads the perch down, lowering the car. Counterclockwise threads it up, raising it. Most kits move approximately 1 to 1.5mm per full rotation, check your kit's documentation.
Step 4. Make the same change on the opposite corner. Changes should be done in matched pairs, both fronts together, both rears together.
Step 5. Re-torque the locking collar firmly. This determines whether your ride height stays set or wanders over time.
Step 6. Lower the car off stands. Bounce each corner a few times to settle the suspension.
Step 7. Measure from the same points as your initial measurement. Compare to your target. Adjust and repeat if needed.
Step 8. Repeat for the other axle. Front first, then rear.
Step 9. Get a professional alignment before driving. Any change affects camber and toe. This is non-negotiable.
Common Mistakes When Setting Ride Height
Going too low on the first try. Start closer to stock than you think you need. You can always go lower. Correcting a stance that is too low means lifting the car again and repeating the full process.
Not measuring before and after. Without a reference, you are guessing. Measure before every adjustment and after every adjustment.
Skipping the alignment. Every time. Even a quarter inch. Do not drive the car before the alignment is done.
Mismatching side to side. Both fronts at the same height, both rears at the same height. A car that is higher on one side wears tires unevenly and feels wrong.
Leaving the locking collar loose. Torque the collar firmly every time. A loose collar is how ride height drifts over time.
Seasonal Ride Height Adjustments
Going too low on the first pass. Start closer to stock than you think you need to. You can always go lower later. Correcting a car that is too low means jacking it back up and going through the whole process again.
Not measuring before and after. Without a reference, you are guessing. Measure before each adjustment and after each adjustment.
Maintaining Your Ride Height Setting
Skipping the alignment. Every time. Even a quarter inch of change. Do not drive the car on a public road before the alignment is scheduled.
Mismatching side to side. Both fronts at the same height. Both rears at the same height. A car sitting taller on one side feels wrong and burns tires unevenly.
Frequently Asked Questions
How do you set the ride height on coilovers?
Loosen the locking collar, rotate the spring perch to your target position (clockwise to lower, counterclockwise to raise), then re-torque the locking collar. Always adjust both sides of an axle together and get a professional alignment after any change.
What tools do I need to adjust coilover ride height?
Coilover spanner wrench, measuring tape, floor jack and stands, and torque wrench. You also need access to an alignment shop before you drive the car after the adjustment.
Why is proper ride height important for performance?
Correct ride height lowers the center of gravity for better cornering and reduces body roll. Setting the car too low creates suspension geometry issues. Camber, toe, and bumpsteer all shift as the car goes lower. The right range gives you the handling benefit without the geometry compromise.
Can setting the ride height too low affect my car?
Yes. Too low means reduced ground clearance, less suspension travel, constant bump stop contact on rough roads, and suspension angles outside the designed range. The car can handle worse than stock, tires wear unevenly, and daily drivability suffers.
How can I ensure equal ride height on both sides of my car?
Measure from the center of the wheel hub to the bottom of the wheel arch on both sides. Adjust both corners of each axle to match before moving to the next axle. Park on a level surface for every measurement.
What is the ideal bump-to-droop ratio for suspension?
For street use, you want roughly equal bump and droop travel remaining at your set ride height. Bump is how far the suspension compresses before hitting the bump stop. Droop is how far it extends before running out. A car set too low uses most of its bump travel before anything touches the road, which means the suspension bottoms out frequently. A good starting point is setting ride height so you keep at least 1 to 1.5 inches of bump travel remaining. Seasonal Ride Height Adjustments Here is something a coilover kit does that lowering springs cannot. You can raise the car for winter and lower it again for summer. Drivers in salt belt climates who want to protect their investment do exactly this. When raising ride height for winter, follow the same process as any other adjustment. Loosen the locking collar, rotate the spring perch to your winter height, re-torque the collar, and book an alignment. The alignment does not get skipped because the change is seasonal. Raising the car also calls for a preload check. A ride height that worked at summer stance may have a different preload relationship at winter stance. Measure preload after any meaningful height change and adjust if needed. Maintaining Your Ride Height Setting Check ride height at every oil change or after any significant road impact. Locking collars can loosen over time, especially in the first few months after installation. A collar that walks loose lets the spring perch migrate, which changes ride height and throws the car off level. Keep the threads clean and apply anti-seize before winter in climates where road salt lives on the road from November through March. Corroded threads make future adjustments difficult and can seize the collar in place for good. Prevention is much cheaper than fixing a seized collar in spring.
Suspension Dynamics Behind Ride Height Settings
Ride height does not exist in isolation. Every millimetre you lower a coilover kit changes the damper position within its stroke. It also shifts the spring perch relationship and the unsprung weight's leverage on the wheel. KW Suspension publishes platform-specific ride height windows for exactly this reason, their engineers map the damper stroke against the geometry at each height increment. Dropping beyond the recommended window compresses the damper into a zone where the internal valving cannot function as designed.
Damping behaviour also shifts as ride height changes. A coilover kit set 30mm lower than stock is not simply a stock setup closer to the ground. The damper works at a different part of its stroke. The spring rate feels stiffer due to geometry changes. The unsprung weight has less travel to manage road inputs. Fortune Auto and Feal build their kits with wider operating windows than most brands. That is why they are popular with builders who push the lower limits of what the geometry will tolerate.
A proper ride height setup is one of the most cost-effective performance suspension upgrades you can make without touching the damper settings. Combined with a professional alignment, it changes how the car responds at every speed. Do not skip the alignment after any ride height change on any coilover kit.
